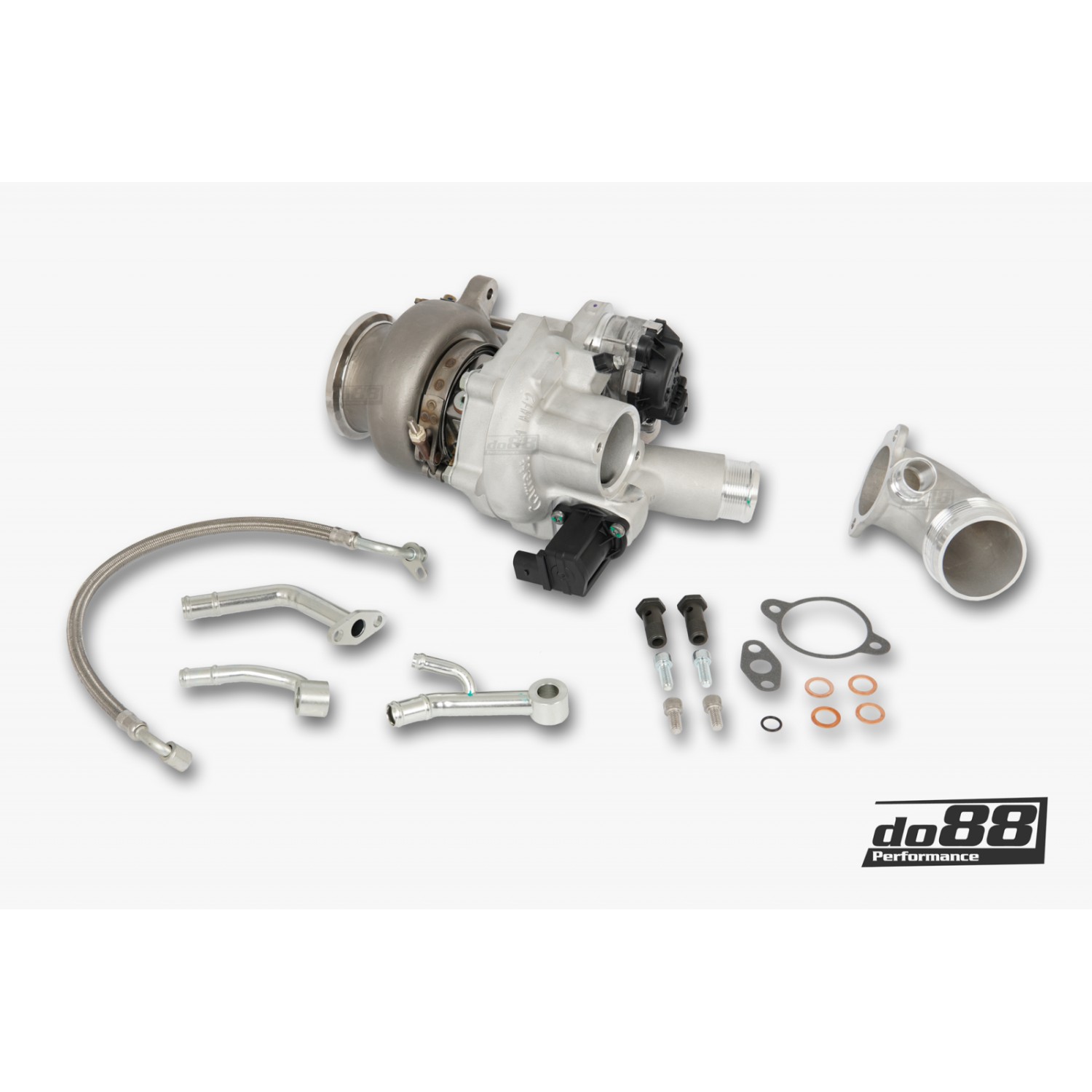

GARRETT POWERMAX™ DIRECT FIT PERFORMANCE STAGE 2 TURBOCHARGER 600 BHP (447kW)*
Garrett PowerMax™ bolt-on turbocharger upgrade for the Volkswagen, Audi, Seat & Skoda 2.0L TSI (EA888) engine platform is engineered to increase engine performance while maintaining OEM installation specifications. This upgrade turbo maximizes the efficiency and air flow compared to the OEM turbocharger. High temperature, Mar-M alloy turbine wheel and twin scroll stainless steel turbine housings are rated for up to 1050° C. This turbocharger is fully assembled with a calibrated electronic actuator and ancillary components for direct OEM fitment.
Stage 2 Features:
- Direct-Fit Stage 2 Upgrade
- 600HP | 447kW* (flywheel) power capability (on-vehicle results)
- 54mm compressor inducer, 67mm compressor exducer
- 54mm turbine inducer, 49mm turbine exducer
- G25-660 turbocharger
- Complete assembly with calibrated electric actuator and ancillary components for OE fitment
- +59% flow compared to IS38 turbo (stock Golf R)
- G-Series compressor wheel aerodynamics for maximum horsepower
- G-Series turbine wheel aerodynamics constructed of Mar-M alloy rated for up to 1050°C
- Stainless steel turbine housing rated for up to 1050°C
- Fully machined speed sensor port
- Ball-bearing
Maximum allowable turbocharger speed is 165krpm for this Stage 2 Turbo. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0003 (includes sensor and gauge), and 781328-0004 (includes speed sensor). Speed sensors sold separately.
*Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The target power has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power.
VW Golf (MK7, MK7.5)
Model years: 2013-2020
Model: GTI, R, Clubsport, ED40, Golf, Sportwagen
Engine: 1.8 TSI, 2.0 TSI
Turbo: IS12. IS20 or IS38
VW Passat (3G)
Model years: 2015-2024
Engine: 1.8 / 2.0 TSI
Turbo: IS20 or IS38
VW Tiguan (MK2)
Model years: 2016-2023
Engine: 2.0 TSI
Turbo: IS20 or IS38
VW Arteon
Model years: 2017-2023
Engine: 2.0 TSI
Turbo: IS20 or IS38
VW Jetta GLI (MK7)
Model years: 2019-
Engine: 2.0 TSI
Turbo: IS20 or IS38
Audi A3 / S3 (8V)
Model years: 2012-2020
Engine: 1.8 TFSI, 2.0 TFSI
Turbo: IS20 or IS38
Audi TT / TTS (8S)
Model years: 2015-2023
Engine: 1.8 TFSI, 2.0 TFSI
Turbo: IS20 or IS38
SEAT León / Cupra (MK3)
Model years: 2013-2020
Engine: 1.8 TSI, 2.0 TSI
Turbo: IS20 or IS38
SEAT Ateca / Cupra (MK1)
Model years: 2016-
Engine: 1.8 TSI, 2.0 TSI
Turbo: IS20 or IS38
Skoda Octavia / VRS (MK3)
Model years: 2013-2020
Engine: 1.8 TSI, 2.0 TSI
Turbo: IS20 or IS38
Skoda Superb (B8)
Model years: 2015-2023
Engine: 1.8 TSI, 2.0 TSI
Turbo: IS20 or IS38
06K145875M
06K145722H
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| AudiA3 / S3Parsed from supplier FITMENT_EN | 8V | 2012–2020 | 1.8 TFSI, 2.0 TFSI |
| AudiTT / TTSParsed from supplier FITMENT_EN | 8S | 2015–2023 | 1.8 TFSI, 2.0 TFSI |
| CupraSEAT Ateca / CupraParsed from supplier FITMENT_EN | MK1 | 2016–2026 | 1.8 TSI, 2.0 TSI |
| CupraSEAT León / CupraParsed from supplier FITMENT_EN | MK3 | 2013–2020 | 1.8 TSI, 2.0 TSI |
| SkodaOctavia / VRSParsed from supplier FITMENT_EN | MK3 | 2013–2020 | 1.8 TSI, 2.0 TSI |
| SkodaSuperbParsed from supplier FITMENT_EN | B8 | 2015–2023 | 1.8 TSI, 2.0 TSI |
| VolkswagenArteonParsed from supplier FITMENT_EN | — | 2017–2023 | 2.0 TSI |
| VolkswagenGolfParsed from supplier FITMENT_EN; trim/model: GTI, R, Clubsport, ED40, Golf, Sportwagen | MK7, MK7.5 | 2013–2020 | 1.8 TSI, 2.0 TSI |
| VolkswagenJetta GLIParsed from supplier FITMENT_EN | MK7 | 2019–2026 | 2.0 TSI |
| VolkswagenPassatParsed from supplier FITMENT_EN | 3G | 2015–2024 | 1.8 / 2.0 TSI |
| VolkswagenTiguanParsed from supplier FITMENT_EN | MK2 | 2016–2023 | 2.0 TSI |
