Forge Motorsport ·Part no.: FMTUBL4

Turbo Blanket for Mini, Citroen DS3 (Pre 2016 Only), and Peugeot 207/208 GTI

Forge Motorsport
Out of stock Out of stock
MOQ1
Secure PaymentsProtected checkout
Fast ShippingWorldwide delivery
Easy ReturnsStraightforward support

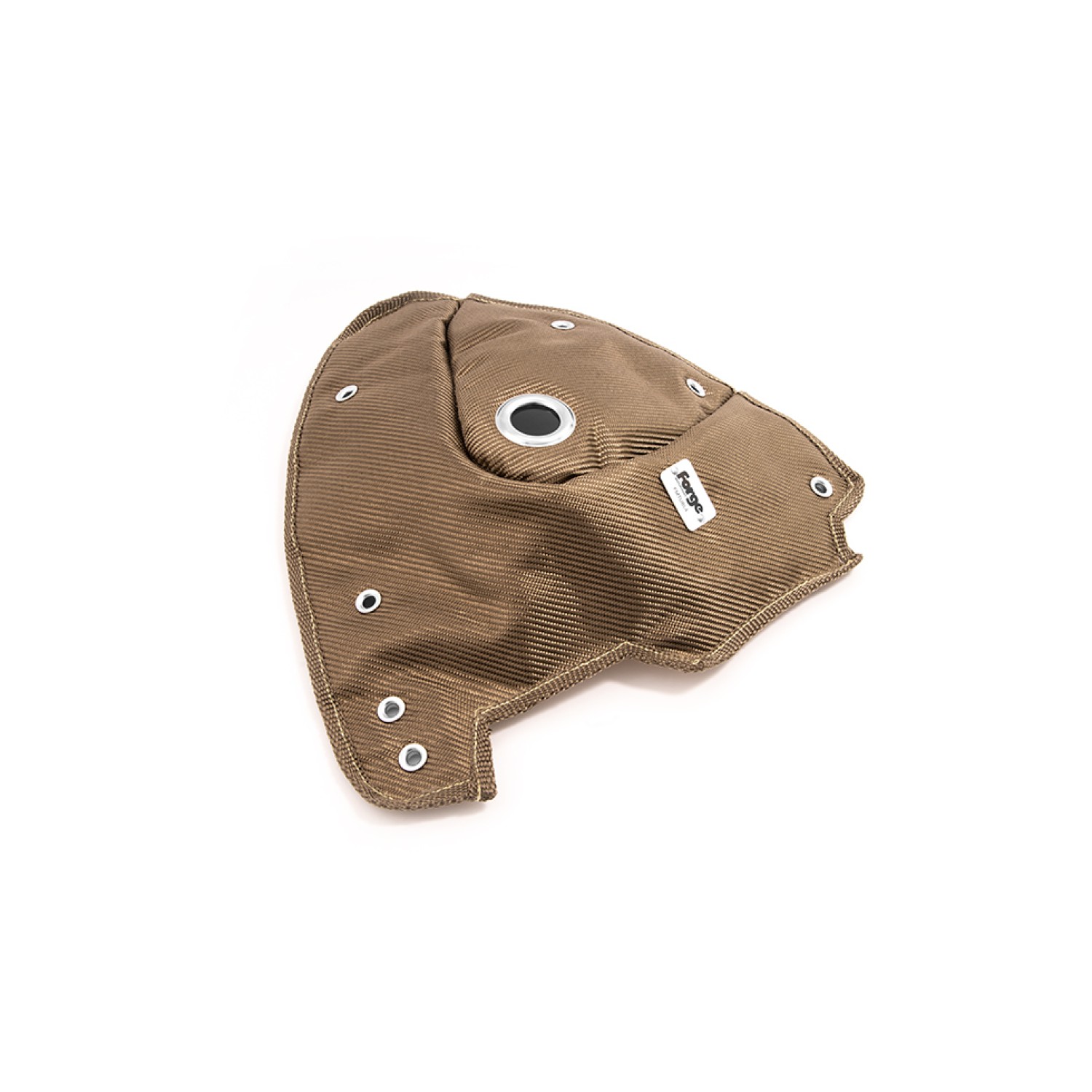

The Forge Motorsport FMTUBL4 has been specifically designed for the Mini R56 stock turbo charger, and also fits the Peugeot 207/208 GTI. This turbo blanket is designed to isolate the radiant heat produced by the turbocharger. The stock Mini heat shield is inadequate and can result in warping the standard air scoop located in the bonnet.

This design has been created to withstand the harshest of environments and proven to withstand temperatures up to 2500 °f of radiant heat which will assist in protecting and prolonging the life of engine components.

Design innovation keeps the heat of the exhaust gases contained within the hot side of the turbocharger, away from the cool side and the intake path which helps reduce turbo lag and air intake temperatures resulting in more power.

Please note that a turbo blanket will lose its flexibility over the first few heat cycles as the material cures, so once fitted it should not be removed as this can cause damage to the blanket.

  • Stainless Steel Rivets
  • Stainless Steel Fasteners
  • Carbon fabric outer shell
  • Calcium Magnesium Silicate Wool constructed Inner Core
  • High temperature Silica fabric



Check your vehicle compatibility: Click here

Please Note: In line with our policy to constantly review, revise, and improve our product range, the appearance of the product you receive may differ from the one advertised.

Safety Information

Toxicological and Ecological Information

Acute Toxicity: According to its composition, this product should not be harmful in normal conditions of use.

Local Effects:

  • Inhalation: Possible irritation of respiratory system. At high temperatures, products of thermal decomposition can be irritating to respiratory system.
  • Ingestion: Can be considered not harmful if swallowed.
  • Skin Contact: Can be considered as non-irritating to skin. Contact with the product, when handled at high temperatures, cause serious burns. At high temperature, products of thermal decomposition can be irritating to skin.
  • Eye Contact: Can be considered as non-irritating to eyes. Contact with the product, when handled at high temperatures, can cause serious burns. At high temperature, products of thermal decomposition can be irritating to eyes.
  • Ecotoxicity: Inert material. Persistence and degradation: Not biodegradable on the base of its structure.

Other Information:

  • The information given in this Material Safety Data Sheet is based on knowledge available at the time of compilation and is intended to describe the product only in terms of health and safety requirements. It does not signify any warranty with regard to specific properties or specifications. The present product is designed for general industrial use.

First Aid Measures:

Eye Contact: Remove particles remaining under the eyelids. Wash well open immediately, abundantly and thoroughly with water. If irritation persists, consult an ophthalmologist.

Skin Contact: Cool skin with cold water after contact with molten compound and remove product with vegetable oil or paraffin. In case of adhesion, do not try to remove the product. Treat the affected areas as thermal burns.

Inhalation: Dust inhalation, inhalation of vapours from heated products, inhalation of vapours due to thermal decomposition. Move to fresh air and in case of persistent problems consults a doctor.

Instructions

VehicleChassisYearsEngine
DS3OnwardsDS3 > (2016 - Onwards) > 1.6 Performance—2016–20261.6 Performance
Second generation (R55/R56/R57/R58/R59) (2006–2015)R55 ClubmanSecond generation (R55/R56/R57/R58/R59) (2006–2015) > R55 Clubman > Pre LCI 2007-2009 N14/N18R552007–2009Pre LCI N14/N18
Second generation (R55/R56/R57/R58/R59) (2006–2015)R56 HatchbackSecond generation (R55/R56/R57/R58/R59) (2006–2015) > R56 Hatchback > LCI 2010-2014R562010–2014—
Second generation (R55/R56/R57/R58/R59) (2006–2015)R56 HatchbackSecond generation (R55/R56/R57/R58/R59) (2006–2015) > R56 Hatchback > Pre LCI 2007-2009 N14R562007–2009Pre LCI N14
Second generation (R55/R56/R57/R58/R59) (2006–2015)R57 ConvertibleSecond generation (R55/R56/R57/R58/R59) (2006–2015) > R57 Convertible > LCI 2010-2014R572010–2014—
Second generation (R55/R56/R57/R58/R59) (2006–2015)R58 CoupeSecond generation (R55/R56/R57/R58/R59) (2006–2015) > R58 Coupe > LCI 2012-2015R582012–2015—
