Mercedes A/CL/GLA45 Turbo Blanket (M133 Engine 355/376 BHP)
This turbo blanket should be fitted OVER the existing OEM heat shield

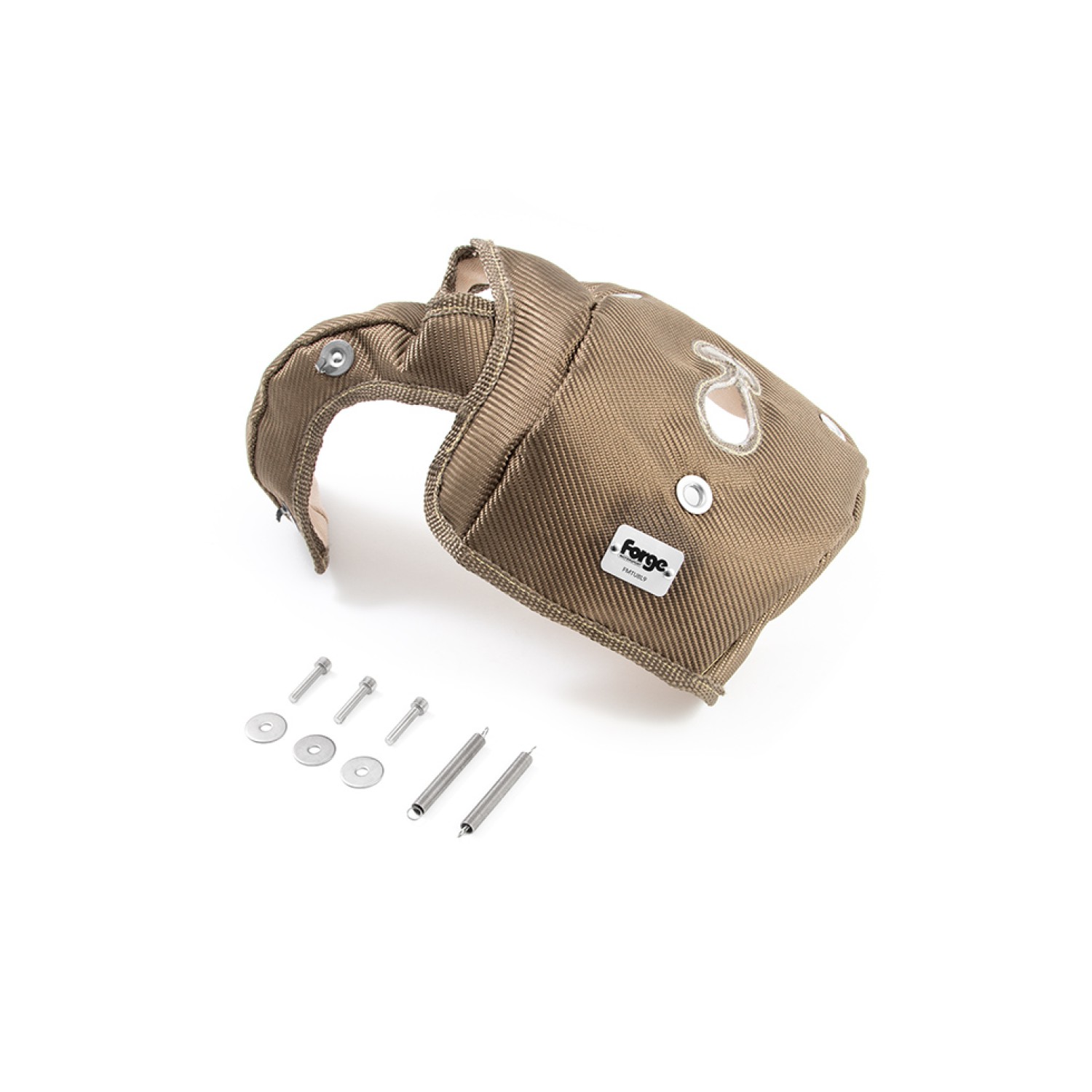

The Forge Motorsport FMTUBL9 has been designed for the Mercedes A45, GLA, CLA AMG stock turbo chargers. This turbo blanket is designed to isolate the radiant heat produced by the turbocharger by further insulating the OE heat shield, the Forge turbo blanket also incorporates further protection to the engines down pipe.
This design has been created to withstand the harshest of environments and proven to withstand temperatures up to 1370°C (2500°F) of radiant heat, which will assist in protecting and prolonging the life of engine components.
Design innovation keeps the heat of the exhaust gases contained within the hot side of the turbocharger, away from the cool side and the intake path which helps reduce turbo lag and air intake temperatures resulting in more power.
Simple to fit using existing OEM hardware.
Please note that a turbo blanket will lose its flexibility over the first few heat cycles as the material cures, so once fitted it should not be removed as this can cause damage to the blanket.
- Stainless Steel Rivets
- Carbon fabric outer shell
- Calcium Magnesium Silicate Wool constructed Inner Core
- High temperature Silica fabric
Please ensure your engine bay is the same as the one pictured in the 1st image below before purchasing this product; otherwise if you have the engine bay with the fire extinguisher (bulkhead fitted) and associated lines, as highlighted in the 2nd image below, the turbo blanket will not fit
.JPG)
Check your vehicle compatibility: Click here
Please Note: In line with our policy to constantly review, revise, and improve our product range, the appearance of the product you receive may differ from the one advertised.
Safety Information
Toxicological and Ecological Information
Acute Toxicity: According to its composition, this product should not be harmful in normal conditions of use.
Local Effects:
- Inhalation: Possible irritation of respiratory system. At high temperatures, products of thermal decomposition can be irritating to respiratory system.
- Ingestion: Can be considered not harmful if swallowed.
- Skin Contact: Can be considered as non-irritating to skin. Contact with the product, when handled at high temperatures, cause serious burns. At high temperature, products of thermal decomposition can be irritating to skin.
- Eye Contact: Can be considered as non-irritating to eyes. Contact with the product, when handled at high temperatures, can cause serious burns. At high temperature, products of thermal decomposition can be irritating to eyes.
- Ecotoxicity: Inert material. Persistence and degradation: Not biodegradable on the base of its structure.
Other Information:
- The information given in this Material Safety Data Sheet is based on knowledge available at the time of compilation and is intended to describe the product only in terms of health and safety requirements. It does not signify any warranty with regard to specific properties or specifications. The present product is designed for general industrial use.
First Aid Measures:
Eye Contact: Remove particles remaining under the eyelids. Wash well open immediately, abundantly and thoroughly with water. If irritation persists, consult an ophthalmologist.
Skin Contact: Cool skin with cold water after contact with molten compound and remove product with vegetable oil or paraffin. In case of adhesion, do not try to remove the product. Treat the affected areas as thermal burns.
Inhalation: Dust inhalation, inhalation of vapours from heated products, inhalation of vapours due to thermal decomposition. Move to fresh air and in case of persistent problems consults a doctor.
Instructions
| Vehicle | Chassis | Years | Engine |
|---|---|---|---|
| A Class W176 (2012-2018)A45 AMG (FaceliftA Class W176 (2012-2018) > A45 AMG (Facelift 2015-) | A45 | 2015 | — |
| A Class W176 (2012-2018)A45AMGA Class W176 (2012-2018) > A45AMG (2013-2015) | — | 2013–2015 | — |
| CLA Class C117 (2013-2019)CLA45CLA Class C117 (2013-2019) > CLA45 (2013-2015) | CLA45 | 2013–2015 | — |
| CLA Class C117 (2013-2019)CLA45 (FaceliftCLA Class C117 (2013-2019) > CLA45 (Facelift 2015-) | CLA45 | 2015 | — |
| GLA Class X156 (2014-2019)GLA45GLA Class X156 (2014-2019) > GLA45 (2014-2015) | GLA45 | 2014–2015 | — |
| GLA Class X156 (2014-2019)GLA45 (FaceliftGLA Class X156 (2014-2019) > GLA45 (Facelift 2015-) | GLA45 | 2015 | — |
